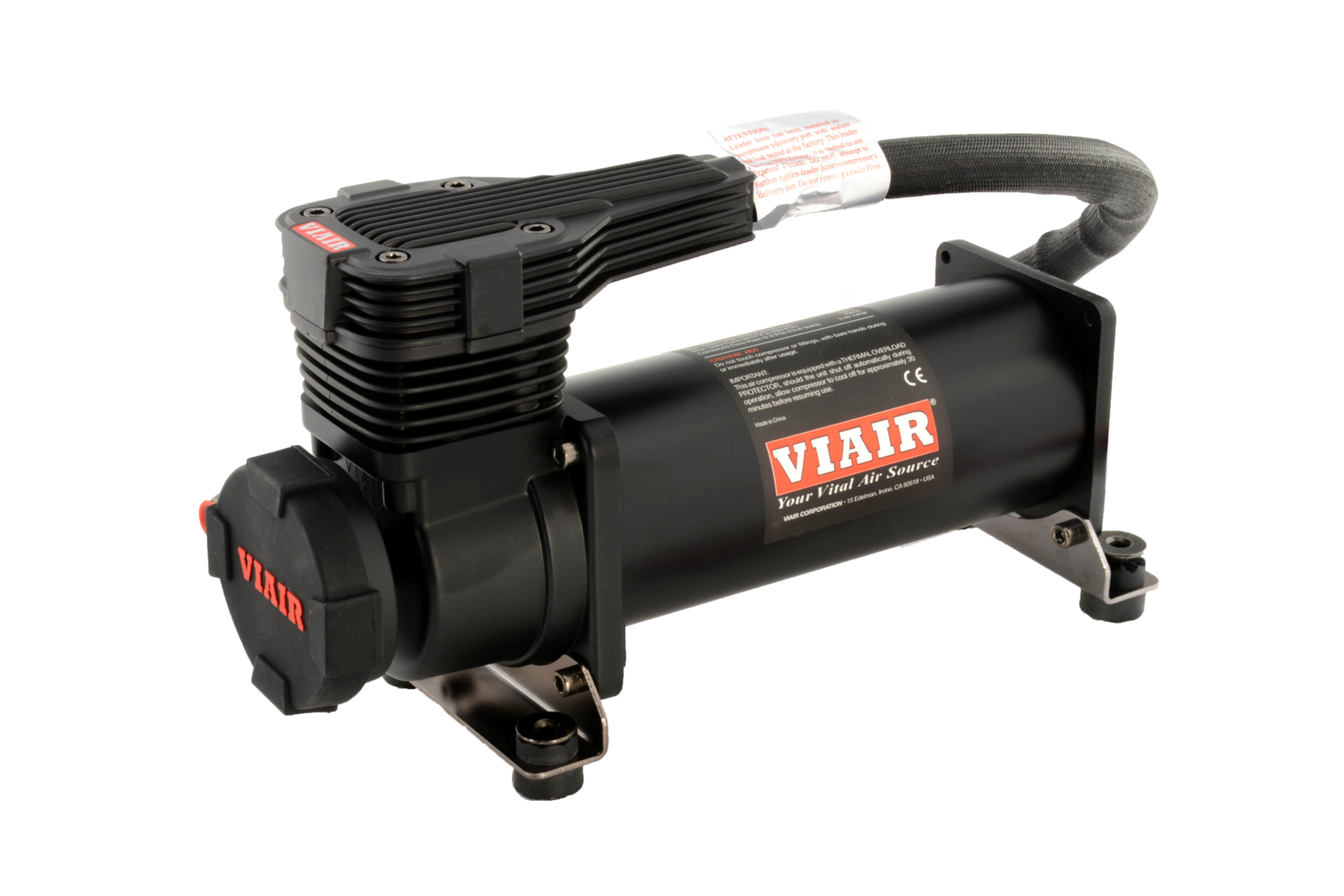

Viair Stealth Black 485C Compressor (100% Duty 200PSI)

VIAIR’s brand new 485C compressor delivers game-changing performance, rated at 100% duty@ 200 PSI. This next generation compressor is a true 200 PSI-rated working pressure pump.

The 485C Dual Performance Value Pack features two 12V 485C compressors with newly developed sleek head design, increased duty cycle and quieter dB levels. The 485C is available in Platinum or Stealth Black, and comes equipped with a stainless steel braided leader hose with an inline check valve.

Note: Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque is 12 to 15 ft. lbs.

Specification

– Permanent Magnetic Motor
– Duty Cycle: 100% @ 200 PSI
– Max. Working Pressure: 200 PSI
– Max. Air Tank: 10.0 Gallon
– Min. Ambient Temp: -40° F
– Max. Ambient Temp: 158° F
– Net Weight: 22.1 lbs

Dimensions

(L) 269.875mm x (W) 104.775mm x (H) 163.5125mm
(L) 10.625″ X (W) 4.125″ X (H) 6.4375″

Fill Rates

2.5 Gallon Tank
0 to 200 PSI – 2 min. 20 sec. (± 10 sec.)
165-200 PSI – 35 sec. (± 03 sec.)

5 Gallon Tank
0 to 200 PSI – 4 min. 50 sec. (± 15 sec.)
165-200 PSI – 1 min. 15 sec. (± 05 sec.)
