D2-H Complete Air Management System
+8
+7
+6
+5
+4
+3
+2

D2-H Complete Air Management System

£2 449.99
NEW IMPROVED
was £2 500.00
Save £50.01
In stock
Save this product for later
Share this product with your friends
Pin it

D2-H Complete Air Management System

Product Details

Availability:Available

Non UK stock Item Estimate Delivery Time - 2-3 weeks

The D2-H from D2 Racing is a height based digital management system that features 4 user definable preset heights and individual four corner air spring control. The wireless digital controller displays all four bag pressures, as well as the tank pressure. The controller uses an OLED adjustable colour display with user loadable wallpaper on start-up / standby, as well as a wireless key fob for quick and easy activation of the 4 ride height presets as well as a rise on start feature.

With this new management the design has been simplified, the receiver and solenoid block are now integrated and the size has been made much smaller to meet customer’s needs. The new management has been modified & tested several times by D2 engineers to reach perfection.
D2's digital management utilizes a serviceable billet aluminium solenoid manifold and now an integrated ECU which makes for simple installation using the supplied pre-wired looms.
If safety and quality is a concern, D2 have your concerns covered! With a low voltage compressor cut off the system will automatically cut the compressor if the vehicles charging system drops below 12.7v, as well as a thermal overload protection where if the compressor runs for longer than 40 minutes it will automatically adjust the cut off pressure to a lower value. The system also features a minimum height and maximum height warning via either audible, visual or audible and visual warnings as well as a park brake system where the vehicle cannot be lowered until the park brake is on. Additionally, all D2 components are manufactured in accordance with TüV ISO 9001:2008 to ensure 100% quality.
Supplied with a polished stainless steel air tank for extreme durability and great looks as well as a Viair 485c compressor for unrivaled reliability and fill times.

All kits are supplied with all items required for installation. All management kits come with top of the range Viair Stealth Black 485C Performance 200PSI air compressor and 5 gallon polished air tank pre installed on a carpeted MDF board meaning installation is simpler than ever.

All kits are supplied with fitting / wiring instructions for easy installation (Video coming soon)

We also have a range of approved fitting centers and retailers nationwide who can cater for your needs.

You can find an authorized installer here-

FIND AUTHORIZED INSTALLER

Specifications:
  • 4 user definable ride height presets.
  • Rise on start.
  • Park brake safety system (only allows lowering with park brake on) (optional wiring).
  • Rechargeable wireless controller with 5 adjustable illumination colours.
  • Wireless illuminated pre-set key fob.
  • Antenna for maximum wireless range.
  • User definable wallpaper for standby mode and start-up mode (download your own).
  • Adjustable solenoid valve speed.
  • Serviceable valves and pressure sensors.
  • Minimum / maximum height warning.
  • Billet aluminium manifold/ecu block.
  • 5 Gallon stainless steel tank.
  • Adjustable pressure switch (150 / 175 / 200psi).
  • Viair 485c Compressor.
  • Compressor voltage cut off.
  • Compressor overload runtime cut off.
  • Optional height leveling sensors (D2-H).

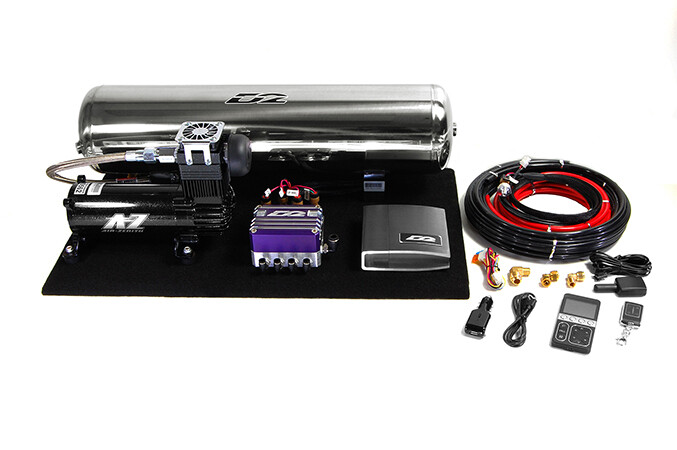

What's in the box?
  • 1 x Wireless Controller.
  • 1 x Wireless Controller Car Charger.
  • 1 x Wireless Key Fob.
  • 1 x Wireless Remote Antenna.
  • 1 x Billet Aluminium Solenoid Manifold/ECU
  • 5 x Air Pressure Sensors (Integrated in manifold !)
  • 1 x 5 Gallon Stainless Steel Tank.
  • 1 x Viair 485c Compressor.
  • 1 x Compressor Check Valve.
  • 4 x Compressor Isolation Mounts.
  • 1 x Compressor Relay.
  • 1 x Compressor Air Filter.
  • 1 x Compressor Leader Hose.
  • 1 x Air Tank Drain.
  • Air Tank Fixings.
  • 1 x Compressor to Tank fitting.
  • 1 x Tank to Manifold fitting.
  • 4 x Manifold to Airbag fittings (6mm).
  • 4x Height sensors with brackets
  • (30m) 6mm Air Line. (Will fit 1/4)
  • 1 x 10mm Air Line.
  • 1 x 100A Maxi Fuse.
  • 1 x Maxi Fuse Holder.
  • 1 x ECU Wiring Multiplug.
  • 5mm Compressor Power Wire.
  • User Manual / Wiring Diagrams.
  • 1 year manufacturer warranty.
