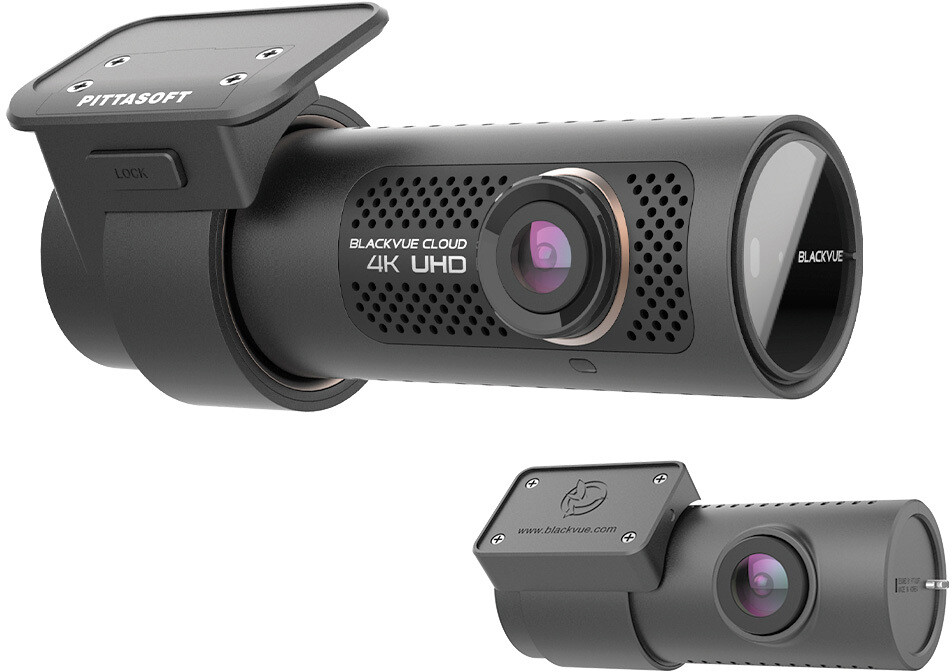

BLACKVUE DR900X+ 2CH - 64GB
BlackVue™ DR900X 2CH
The Single-Channel Dashcam Benchmark
The BlackVue DR900X Series is a 4K Ultra HD Cloud-connected dashboard camera that takes video fidelity to a whole new performance level.
4K in a dashcam is not a gimmick. It is a game-changer. It is not about playing videos on a giant screen–although you could do that too. It’s about providing video proof.
A dashcam is only as good as its ability to capture crucial details–usually license plate numbers.The 8-megapixel 4K UHD sensor does just that by capturing 4 times as many pixels as in Full HD. And with its fast shutter speed, details are frozen in place. Just pause and zoom in.
The Best Single-Channel Cloud Dashcam
8-megapixel CMOS sensor recording in 4K Ultra High Definition (3840×2160) at 30FPS.
The ultra-wide 162-degree angle takes full advantage of the 4K UHD resolution. With H.265 (High Efficiency Video Coding), videos look better and files are smaller, while the dual-band Wi-Fi ensures blazing fast transfer to your phone.
Native Parking Mode with built-in voltage monitor to protect your vehicle battery (hardwiring cable included).
With the free BlackVue Cloud service, check on your car from anywhere, anytime.
Fast Wi-Fi, GPS and Optional LTE
GPS: visualize the location of your vehicle on the map during video playback and overlay speed on videos (can be hidden in settings).
Wi-Fi: connect to your BlackVue with a smartphone or tablet and download files at blazing speed. Wi-Fi also lets your BlackVue connect to BlackVue Cloud via any home or mobile Wi-Fi hotspot (router).
LTE: connect the optional LTE connectivity module* via the USB port for the best Cloud experience. (*) SIM card not included.
No need to sacrifice recording time
With bigger resolution come bigger files…unless you have better compression.
High Efficiency Video Coding (HEVC/H.265) is the standard in 4K video broadcasting and streaming.
With HEVC, you get great-looking 4K videos but same recording time as a regular Full HD dashcam.
Who said you can’t have it all?
Native Parking Mode
Hardwiring cable included
DR900X Series can be hardwired to your vehicle’s fuse panel for Parking Mode, without requiring optional accessories. The dashcam will switch to Parking Mode automatically when vehicle ignition is turned off. Voltage cutoff and timer can be set in the BlackVue App.
Parking Mode accessories support
DR900X Series is also compatible with all BlackVue Parking Mode Kits and Batteries.
Your videos are safe
Event Files Overwrite Protection: dashcams record in a loop, overwriting older files when the memory is full. BlackVue DR900S-1CH can prevent Event files (triggered manually or by impacts) overwriting. Up to fifty (50) files can be protected this way. You can choose to allow new Event files to overwrite past Event files, thus keeping the latest fifty.
Adaptive Format-Free File Management: this BlackVue-developed file system improves recording stability and requires less microSD card formatting.
SD Card Failure Alert: your BlackVue detects as soon as the microSD card fails and warns you with a “Please check SD card” voice alert.
Built-in Impact & Motion Detection
Automatically tags important files
While driving, your BlackVue detects impacts and sudden changes in speed. While parked, it also detects movements*.
Use the filters in the BlackVue App and Viewer All videos are tagged (Normal, Event, Parking Mode motion or time lapse), so that you can easily find the relevant ones in the BlackVue Viewer for Windows and Mac OS or the BlackVue App for Android and iOS.
Sleek Interface
Event Files Overwrite Protection:
Programmable proximity sensor Toggle audio recording ON and OFF by simply waving your hand in front of it. The sensor can also be configured to trigger Manual Event videos in the settings.
Wi-Fi button Turn Wi-Fi ON/OFF with the push of a button. All actions are confirmed by a voice prompt.
Manage Videos Easily with the BlackVue App and Viewer
The BlackVue App (iOS/Android) and Viewer (Windows/Mac OS) are free to download and use.
Both allow you to change settings and review videos sorted by time and type (Normal/Event/Parking).
With the BlackVue App, connect via Wi-Fi to your dashcam to retrieve videos on the spot.
BlackVue Cloud
Me and My Car. Connected.
Connect to your BlackVue anytime, from anywhere in the world with BlackVue Cloud.
Enjoy remote Live View and Push Notifications to your phone.
Back up important videos to the Cloud remotely.
Play and download videos from your dashcam’s memory or the Cloud from anywhere.
Check the BlackVue Cloud page for more information.
LTE Connectivity Module (Optional)
The CM100LTE connects to your compatible BlackVue X Series dashcam to provide easy 4G LTE connectivity. All you need is a valid Nano SIM card. The CM100LTE connects via the USB port of your dashcam. Your BlackVue powers the module and automatically accesses the Cloud when the module is plugged in.
Note: when purchasing, make sure the CM100LTE you choose is compatible with your mobile carrier’s network. Not compatible with DR590X Series.
Tamper Proof Case (Optional)
The BlackVue Tamper-Proof Case is a security accessory for BlackVue DR900X Series dashcams. It blocks physical access to the microSD card slot and microSD format button, and prevents unplugging the power and coaxial cables, thus highly reducing risks of data tampering.
PARKING MODE MONITORING
with Power Magic Pro, Power Magic Battery Pack or Power Magic Ultra Battery
Enjoy peace of mind knowing that your car is under protection while you are away. BlackVue automatically switches to Parking Mode to monitor you parked vehicle, but only writes to the memory card when something happens (motion or impact detected). Thanks to the video buffer, the few seconds leading to the triggering event are also recorded.
Parking Mode Event Voice Notifications:upon exiting Parking Mode, your BlackVue tells you if Events were recorded when you were away from your car, so you can check right away the Event videos on the BlackVue App.
Scheduled Reboot: Schedule a daily automatic reboot (optional—by default at night) to minimize potential errors. Reboots happen only if the dashcam is in Parking Mode and not writing data to the microSD card. This means no Normal driving, Event, or Parking Mode recording can be interrupted by a scheduled reboot.
Super stealthy:BlackVue DR900X Series allows you to completely turn off all LED indicators in Parking Mode. Only the recording LED indicator facing the interior of the vehicle will blink when motion or impact is detected.
IN THE BOX
- 1 x Front Camera
- 1 x Hardwiring Power Cable
- 1 x Cigarette Lighter Power Cable
- 1 x MicroSD Card
- 1 x MicroSD Card Reader
- 1 x Cable Clips (5EA)
- 1 x Spare Mount Sticky Pad
- 1 x Pry tool
- 1 x Quick Start Guide
SPECIFICATIONS
| Key Features | |
|---|---|
| Model Name | DR900X–1CH 4K UHD Dashcam |
| Channel | 1CH |
| Highlights | 4K UHD, HEVC (H.265), 2.4-5GHz Wi-Fi, Cloud, External LTE Module (Optional) |
| Product Dimensions | W 118.5 mm (4.67″) x H 36 mm (1.42″) / 104 g (3.67 oz) |
| Memory Support | microSD card up to 256GB |
| Recording Modes | – Normal, – Event (Impact Detection / Speed Limit / Manual), – Parking Mode (Impact+Region-based Motion Detection, Timelapse+Events) |
| Parking Mode | YES (with 3-wire hardwiring cable – included) |
| Parking Mode Event Voice Notifications | YES |
| Imaging Sensor | 8MP CMOS Sensor |
| Viewing Angle | Diagonal 162°, Horizontal 136°, Vertical 77° |
| Resolution Frame Rate | 4K UHD (3840×2140) @30fps * Frame rate may vary during Wi-Fi streaming. |
| Video Codec | H.265 (HEVC), H.264 (AVC) |
| Image Quality and Bitrate Front/Rear | Highest (Extreme): 25 Mbps Highest: 12 Mbps High: 10 Mbps Normal: 8 Mbps |
| Format Free | YES (Adaptive) |
| Event File Overwrite Protection | YES (up to 50) |
| SD Card Failure Alert | YES |
| Scheduled Reboot | YES |
| Video File Extension | MP4 |
| Wi-Fi | Built-in (802.11 a.b.g.n.ac) |
| Cloud Compatible | YES |
| GPS | Built-in (Dual Band : GPS, GLONASS) |
| Microphone | Built-in |
| Speaker | Built-in |
| Impact Sensor | 3-Axis Acceleration Sensor |
| LED Indicators | Recording LED, GPS/BT LED, LTE/Wi-Fi LED, Front Security LED, Proximity Sensing indicator LED |
| Button | Button: Wi-Fi ON/OFF (Tap) Proximity sensor: Mic ON/OFF / Trigger Manual Recording / OFF (configurable) |
| Operation Temperature | -20℃ – 70℃ (-4°F – 158°F) |
| Storage Temperature | -20 °C − 90 °C (-4 °F − 194 °F ) |
| High Temp Cut Off | Approx. 75℃ (167°F) |
| Backup Battery | DC 12V-24V (DC Plug (Ø3.5 x Ø1.1)) to Wires (Black: GND / Yellow: B+ / Red: ACC) |
| Power Consumption Hour | Normal Mode (WiFi On / GPS On) : 350mA / hour Normal Mode (WiFi Off / GPS On) : 310mA / hour Parking Mode (WiFi On / GPS Off) : 265mA / hour Parking Mode (WiFi Off / GPS Off) : 225mA / hour * Actual power consumption may vary depending on use conditions and environment. |
| Certifications | FCC, CE, RoHS, Telec, WEEE, IC |
| software | BlackVue Viewer * Windows 7 or higher and Mac Yosemite OS X (10.10) or higher |
| Application | BlackVue Application (Android 5.0 or higher, iOS 9.0 or higher) |
| Others | Adaptive Format-Free File Management System |
| LTE | External (Optional) |
VIDEO QUALITY SETTINGS & RECORDING TIME
| Model | Memory Capacity | Image Quality | Resolution | |||
| DR900X-1CH | 4K UHD @ 30 fps (Extreme) | 4K UHD @ 30 fps | Full HD @ 60 fps | Full HD @ 30 fps | ||
| 64GB | Highest (Extreme) | 3 HR 40 MIN | x | x | x | |
| Highest | x | 5 HR 20 MIN | 5 HR 20 MIN | 5 HR 20 MIN | ||
| High | x | 6 HR 40 MIN | 6 HR 40 MIN | 6 HR 40 MIN | ||
| Normal | x | 8 HR 40 MIN | 8 HR 40 MIN | 8 HR 40 MIN | ||
