BLACKVUE DR590X 2CH 32GB WiFi FRONT & REAR DASH CAM

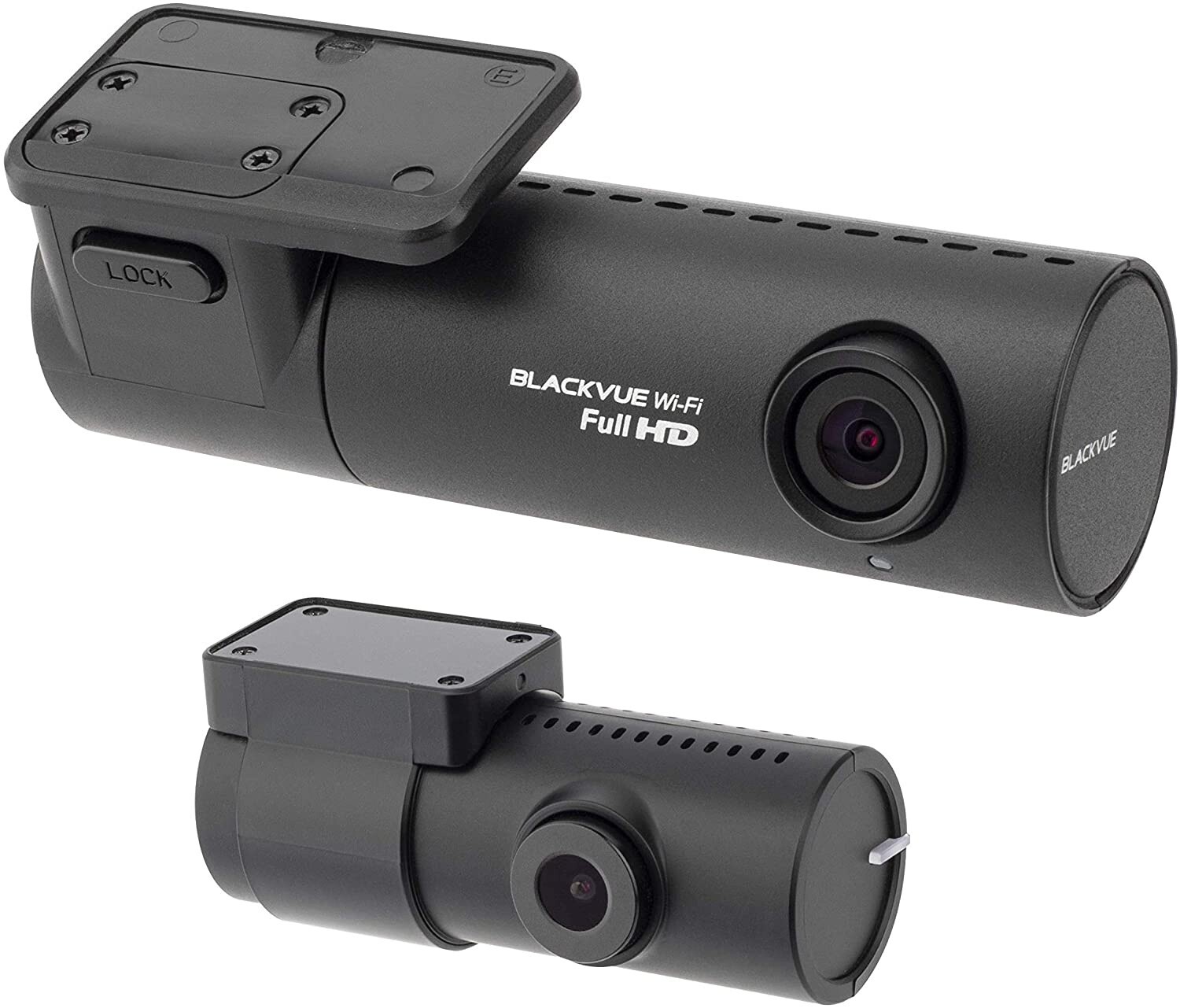

BlackVue™ DR590X 2CH
Simple Dual Full HD Wi-Fi Dashcam
Outstanding Dual Full HD quality in a small form factor, featuring Sony’s STARVIS™ image sensor in the front camera for better clarity in low light.
The DR590X-2CH records both front and back or interior of your vehicle in Full HD 1080p.
Built-in Wi-Fi: easily adjust settings and transfer videos to your phone with the BlackVue App.
Dual Full HD Wi-Fi Dashcam
Full HD 1080p front and rear @30fps: the DR590X-2CH records Full HD 1080p videos of the front and back of your car at 30 frames per second, in a 139-degree wide view angle. With the front camera’s Sony STARVIS imaging sensor, you get awesome image clarity day and night.
Built-in Wi-Fi: connect to your dashcam with the BlackVue App to adjust settings, check the view from the front and rear cameras or transfer files to your mobile device.
STARVIS is a trademark of Sony Corporation.
60 frames per second recording
The DR590X Front Camera records super fluid videos at a high frame rate of 60 frames per second.
This means videos look more lifelike and the dashcam can better catch details in fast moving objects thanks to reduced motion blur.
Native Parking Mode
With included Hardwiring cable
DR590X can be hardwired to your vehicle’s fuse panel for Parking Mode with the included Hardwiring cable. The dashcam will switch to Parking Mode automatically when vehicle ignition is turned off. Voltage cutoff and timer can be set in the BlackVue App.
Parking Mode accessories support
DR590X Series is also compatible with all BlackVue Parking Mode Kits and Batteries.
Built-in Wi-Fi and Optional Connectivity
Built-in Wi-Fi:
The DR590X-2CH features built-in Wi-Fi to let you connect with the BlackVue App. A button lets you turn Wi-Fi on/off.
Additionally, you can configure the Wi-Fi activation behavior in the settings (Auto Turn On, Auto Turn Off).
USB port: The USB port lets you connect a GPS receiver
Built-in Impact & Motion Detection
Automatically tags important files While driving, your BlackVue detects impacts and sudden changes in speed. While parked, it also detects movements*.
Use the filters in the BlackVue App and Viewer All videos are tagged (Normal, Event, Parking Mode motion or time lapse), so that you can easily find the relevant ones in the BlackVue Viewer for Windows and Mac OS or the BlackVue App for Android and iOS.
External GPS Receiver (Optional)
The External GPS Receiver connects to the USB port to add speed and location data to your videos. Speed: speed data–in Km/h or Mph–will be overlaid in the video (can be turned off in the settings). Location: you can visualize the location of your vehicle in the BlackVue Viewer’s Map during video playback.
Sleek Interface
Programmable proximity sensor Toggle audio recording ON and OFF by simply waving your hand in front of it. The sensor can also be configured to trigger Manual Event videos in the settings.
Wi-Fi button Turn Wi-Fi ON/OFF with the push of a button. All actions are confirmed by a voice prompt.
Your videos are safe
Event Files Overwrite Protection: dashcams record in a loop, overwriting older files when the memory is full. BlackVue can prevent Event files (triggered manually or by impacts) overwriting. Up to fifty (50) files can be protected this way. You can choose to allow new Event files to overwrite past Event files, thus keeping the latest fifty.
Adaptive Format-Free File Management: this BlackVue-developed file system improves recording stability and requires less microSD card formatting.
SD Card Failure Alert: your BlackVue detects as soon as the microSD card fails and warns you with a “Please check SD card” voice alert.
Manage Videos Easily with the BlackVue App and Viewer
The BlackVue App (iOS/Android) and Viewer (Windows/Mac OS) are free to download and use.
Both allow you to change settings and review videos sorted by time and type (Normal/Event/Parking).
With the BlackVue App, connect via Wi-Fi to your dashcam to retrieve videos on the spot.
Motion/Impact Detection Parking Mode
Motions recorded by the image sensor (marked “P” in the file list).
Impacts detected by the accelerometer/G-sensor (marked “E” in the file list).
Choose detection regions to reduce the risk of triggering unwanted motion recordings due to trees swaying in the wind, far-away moving objects, etc.
Continuously records at 1FPS
Videos are played back at 30FPS.
1-minute Time lapse Parking Mode video = 30 minutes real time coverage.
Cover a period of more than 70 hours on a 32GB microSD card at the highest (Extreme) quality setting.
When an impact is detected, the dashcam creates a buffered Event video.
PARKING MODE MONITORING
with Power Magic Pro, Power Magic Battery Pack or Power Magic Ultra Battery
Enjoy peace of mind knowing that your car is under protection while you are away. BlackVue automatically switches to Parking Mode to monitor you parked vehicle, but only writes to the memory card when something happens (motion or impact detected). Thanks to the video buffer, the few seconds leading to the triggering event are also recorded.
Parking Mode Event Voice Notifications:upon exiting Parking Mode, your BlackVue tells you if Events were recorded when you were away from your car, so you can check right away the Event videos on the BlackVue App.
Scheduled Reboot: Schedule a daily automatic reboot (optional—by default at night) to minimize potential errors. Reboots happen only if the dashcam is in Parking Mode and not writing data to the microSD card. This means no Normal driving, Event, or Parking Mode recording can be interrupted by a scheduled reboot.
Super stealthy:BlackVue DR750X Series allows you to completely turn off all LED indicators in Parking Mode. Only the recording LED indicator facing the interior of the vehicle will blink when motion or impact is detected.
Enjoy peace of mind knowing that your car is under protection while you are away. BlackVue automatically switches to Parking Mode to monitor you parked vehicle, but only writes to the memory card when something happens (motion or impact detected). Thanks to the video buffer, the few seconds leading to the triggering event are also recorded.
Parking Mode Event Voice Notifications:upon exiting Parking Mode, your BlackVue tells you if Events were recorded when you were away from your car, so you can check right away the Event videos on the BlackVue App.
Scheduled Reboot: Schedule a daily automatic reboot (optional—by default at night) to minimize potential errors. Reboots happen only if the dashcam is in Parking Mode and not writing data to the microSD card. This means no Normal driving, Event, or Parking Mode recording can be interrupted by a scheduled reboot.
Super stealthy:BlackVue DR750X Series allows you to completely turn off all LED indicators in Parking Mode. Only the recording LED indicator facing the interior of the vehicle will blink when motion or impact is detected.
IN THE BOX
- 1 x Front Camera
- 1 x Rear Camera
- 1 x Cigarette Lighter Power Cable
- 1 x MicroSD Card
- 1 x MicroSD Card Reader
- 1 x Cable Clips (5EA)
- 1 x Spare Mount Sticky Pad
- 1 x Pry tool
- 1 x Vehicle Power Cable
- 1 x Quick Start Guide
SPECIFICATIONS
| Key Features | |
|---|---|
| Model Name | DR590X-2CH |
| Channel | 2CH |
| Highlights | Full HD (Front + Rear), Wi-Fi, External GPS, Sony Sensor |
| Product Dimensions | Front: W 111.8 mm (4.40″) x H 34 mm (1.34″) / 87.8 (3.10 oz) Rear: W 67.4 mm (2.55″) x H 25 mm (0.98″) / 20.3 g (0.72 oz) |
| Rear Camera Connection | Analog cable |
| Memory Support | microSD card up to 256GB |
| Recording Modes | – Normal, – Event (Impact Detection / Speed Limit / Manual), – Parking Mode (Motion+Impact Detection) |
| Parking Mode | YES (with optional 3-wire hardwiring cable) |
| Parking Mode Event Voice Notifications | YES |
| Imaging Sensor | Front: Sony STARVIS™ CMOS Sensor (Approx. 2.1MP) Rear: CMOS Sensor (Approx. 2MP) |
| Viewing Angle | Front: Diagonal 139°, Horizontal 116°, Vertical 61° Rear: Diagonal 136.8°, Horizontal 111.3°, Vertical 57.5° |
| Resolution Frame Rate | Front & Rear Full HD @30fps * Frame rate may vary during Wi-Fi streaming |
| Video Codec | H.264 (AVC) |
| Image Quality and Bitrate Front/Rear | Highest (Extreme): 25 Mbps Highest: 12 Mbps High: 10 Mbps Normal: 8 Mbps |
| Format Free | YES (Adaptive) |
| Event File Overwrite Protection | YES (up to 50) |
| SD Card Failure Alert | YES |
| Scheduled Reboot | YES |
| Video File Extension | MP4 |
| Wi-Fi | Built-in (802.11n (2.4~2.4835 GHz)) |
| Cloud Compatible | Cloud Lite |
| GPS | External (optional) |
| Microphone | Built-in |
| Speaker | Built-in |
| Impact Sensor | 3-Axis Acceleration Sensor |
| LED Indicators | Recording LED, GPS LED, Wi-Fi LED, Front Security LED |
| Button | Button: Wi-Fi ON/OFF |
| Operation Temperature | -20℃ – 70℃ (-4°F – 158°F) |
| Storage Temperature | -20℃ – 80℃ (-4°F – 176°F) |
| High Temp Cut Off | Approx. 70℃ (158°F) |
| Backup Battery | Built-in supercapacitor |
| Input Power | DC 12V-24V (DC Plug (Ø3.5 x Ø1.1)) to Wires (Black: GND/Yellow: B+/Red: ACC) |
| Power Consumption Hour | Normal Mode (WiFi On/GPS On): 240mA/hour Normal Mode (WiFi Off/GPS On): 200mA/hour Parking Mode (WiFi On/GPS Off): 220mA/hour Parking Mode (WiFi Off/GPS Off): 180mA/hour Normal Mode (WiFi On/GPS On): 290mA/hour Normal Mode (WiFi Off/GPS On): 260mA/hour Parking Mode (WiFi On/GPS Off): 250mA/hour Parking Mode (WiFi Off/GPS Off): 220mA/hour * Actual power consumption may vary depending on use conditions and environment. |
| Certifications | FCC, CE, RoHS, Telec, WEEE, IC |
| software | BlackVue Viewer* Windows 7 or higher and Mac Yosemite OS X (10.10) or higher |
| Application | BlackVue Application (Android 5.0 or higher, iOS 9.0 or higher) |
| Others | Adaptive Format-Free File Management System |
VIDEO QUALITY SETTINGS & RECORDING TIME
| Model | Memory Capacity | Resolution | Resolution | |||
| DR590X-2CH | ||||||
| 32GB | Highest | 2 HR 50 MIN | ||||
| High | 3 HR 40 MIN | |||||
| Normal | 4 HR 40 MIN | |||||
